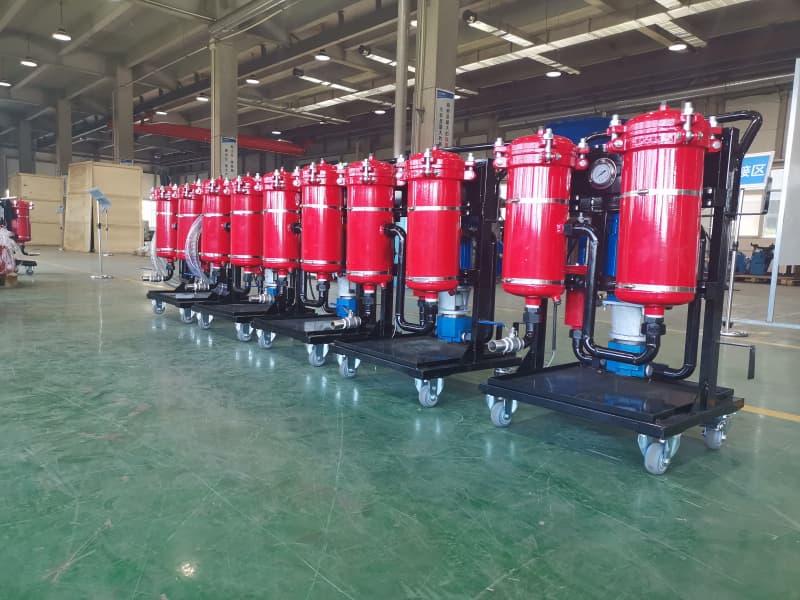

Industrial Oil Purifier – 50 L/min Three-Stage Filtration System

This industrial oil purifier is designed for efficient removal of solid particles and contaminants from lubricating oil, hydraulic oil, and other compatible industrial fluids. With a rated flow capacity of 50 L/min, it provides a practical solution for oil cleaning, maintenance, and continuous filtration operations. The system is suitable for applications where clean oil is essential for protecting pumps, valves, bearings, hydraulic components, and other critical equipment. The oil purifier operates across a wide temperature range from -5°C to 80°C and supports oil viscosities from 10 to 160 cSt. This broad operating range allows the equipment to handle different oil conditions and seasonal working environments. The maximum working pressure is 0.6 MPa, while the initial pressure drop is less than 0.01 MPa, helping maintain efficient oil circulation during operation.

Three-Stage Filtration for Cleaner Oil

The main advantage of this oil purifier is its three-stage filtration structure. The first stage uses a 100-micron coarse filter to capture larger particles and impurities before the oil enters the finer filtration stages. This helps reduce the contaminant load on the downstream filter elements and supports longer service life. The second stage provides 20-micron fine filtration for removing smaller solid contaminants. The third stage uses a 5-micron precision filter to further improve oil cleanliness. The progressive filtration design balances filtration efficiency, flow performance, and filter element protection.

Key Features and Advantages

• 50 L/min Flow Capacity: Provides stable oil circulation for efficient filtration and maintenance operations.
• Three-Stage Filtration: Combines 100 μm, 20 μm, and 5 μm filtration levels for progressive contaminant removal.
• Wide Viscosity Compatibility: Suitable for fluids with viscosities from 10 to 160 cSt.
• Wide Temperature Range: Designed for operation from -5°C to 80°C.
• Low Initial Pressure Drop: Initial pressure drop below 0.01 MPa helps support smooth oil flow.
• Reliable Industrial Power: Uses a 380 V AC, 50 Hz, three-phase electrical system with a 1.1 kW motor.
• Convenient Oil Connections: G1-inch inlet and outlet ports simplify integration into compatible oil circulation systems.
• Equipment Protection: Cleaner oil can help reduce the impact of particulate contamination on hydraulic and lubrication components.

Technical Specifications

Applications

This oil purifier can be used for industrial oil cleaning, lubrication system maintenance, hydraulic oil filtration, oil circulation systems, machinery maintenance, and other applications requiring controlled removal of particulate contamination. It is particularly suitable for factories, maintenance workshops, industrial equipment service providers, and machinery operators looking to improve oil cleanliness and extend the usable life of compatible fluids. By combining stable 50 L/min flow, three-stage filtration, low pressure drop, and a 1.1 kW three-phase motor, this oil purifier offers a practical and efficient approach to routine industrial oil purification and equipment maintenance.
